Главная / Каталог / Системы безопасности электропитания / Источники бесперебойного питания (ИБП) / APC / APC BR1300MI

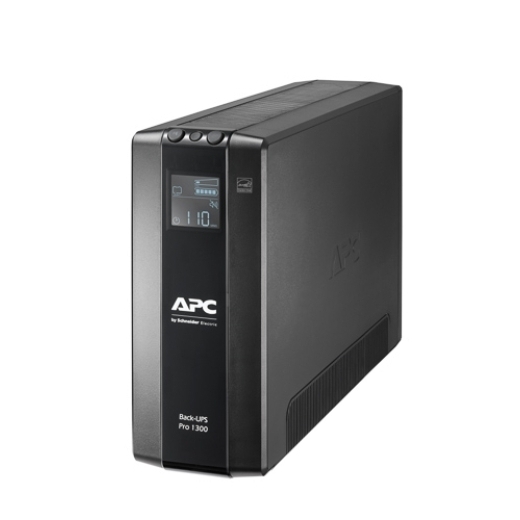

APC BR1300MI

APC BR1300MI

Характеристики

Output

Max Configurable Power (Watts)
780 Watts / 1.3kVA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Sync to mains
Topology
Line interactive

Input

Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
176 - 294V

Batteries & Runtime

Battery type
Lead-acid battery
Typical recharge time
16hour(s)
Replacement Battery
APCRBC165
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Charge Power (Watts)
11 Watts
Runtime
View Runtime Graph
View Runtime Chart

Communications & Management

Interface Port(s)
USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating
509Joules
Data Line Protection
RJ45 10/100/1000 Base-T Ethernet protection
Filtering
Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous

Physical

Maximum Height
100MM, 10.0CM
Maximum Width
250MM, 25.0CM
Maximum Depth
382MM, 38.2CM
Net Weight
10.2KG
Shipping weight
11.85KG
Shipping Height
330MM, 33.0CM
Shipping Width
485MM, 48.5CM
Shipping Depth
225MM, 22.5CM
Color
Black
Master Carton Dimensions (Length x Width x Height)
356 x 51 x 254MM
Master Carton Units
1.0
Master Carton Weight
12.7
SCC Codes
10731304346903

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (Non-condensing) %
Operating Elevation
0 - 3048meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 (Non-condensing) %
Storage Elevation
0 - 15240meters
Audible noise at 1 meter from surface of unit
45.0dBA
Online thermal dissipation
22.0BTU/hr
